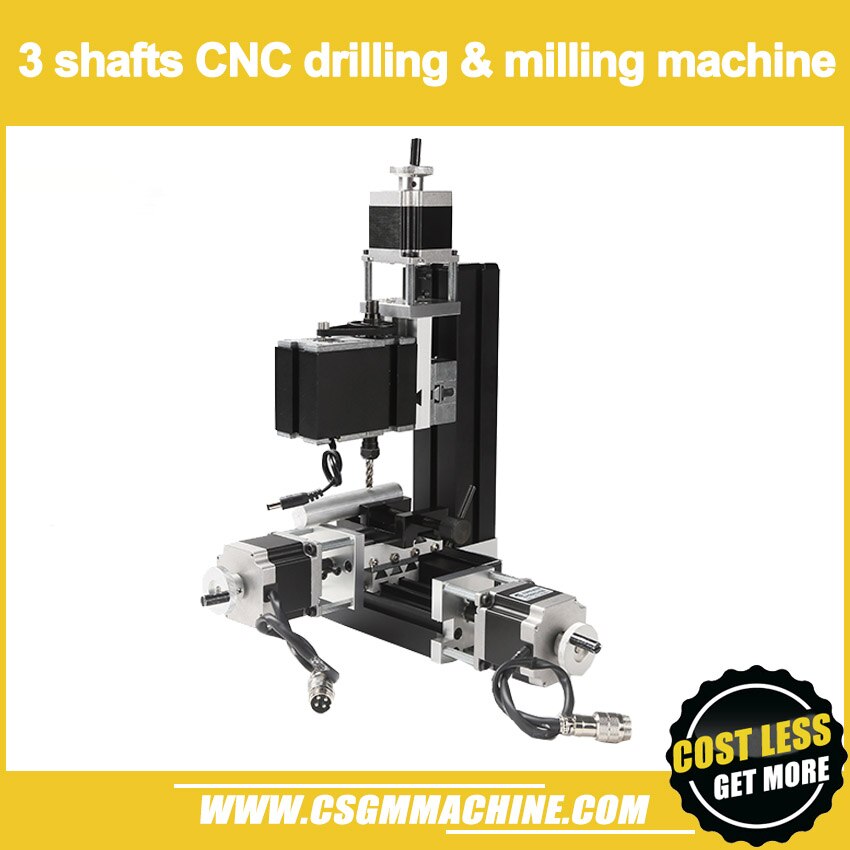

TZC20005M Mini Metal 3 shafts CNC drilling and milling machine/Mach3 CNC DIY Milling Machine

Mini Metal 3 shafts CNC drilling and milling machine

Feature:

Motor case and headstock are jointed. Motor power reaches 144W by using a powerful motor. It can machine gears with different specifications.

1.System: Mach 3(Optional Zhouyu Industrial system)

2. Machine parts: headstock, central block, motor blade, gear, cross slider, big slider, connection piece, long machine bed, short machine bed etc.

​

Technical parameters:

1.Motor speed : 12,000rpm/min

2.Input voltage/current/power:12VDC/5A/60W

3. Axis Y,Z slider travel 50mm, Axis X 145mm

4.Collets:1-6mm

5. Maximum working size of vice:50mm

6.X、Y、Z stepping motor:1.5Nm, current 2A,1.8°

7.Accuracy: 0.07mm

8.Maximum positioning speed :300mm/min

9. Processing material: wood, engineering plastic, soft metal (gold, silver, copper, aluminum etc.)

10.Computer port: parallel interface

11.Power of controller and adaptor: Input AC110-240V, output DC12V,5A

 Processing Product:

Display Picture:

 Operation Picture:
